Ni-Zn EMI Suppression Ferrite Cores

Split EMI Suppression Cores



Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores

CF Series



Split EMI Suppression Core (CF Series) consists with a nylon plastic case and two half ferrite cores. It can be clamped on cable easily so don’t need cut the existing cable firstly and can be removed from cable without damage. Due to this feature, Split EMI Suppression Core (CF Series) can be installed after assembly products to suppress high frequency noise from cables and save the time before marketing.







PDF Version :





Applications :

• Suppress high frequency noise from cables to compliance with FCC, VDE and VCCI.
• Suitable for various power / signal cables inside or outside the equipments.
• Widespread use for electric equipments like NB, PC, monitor, printer, digital camera, power supply, DVD player, fax machine, medical equipment, internet wire, and etc.

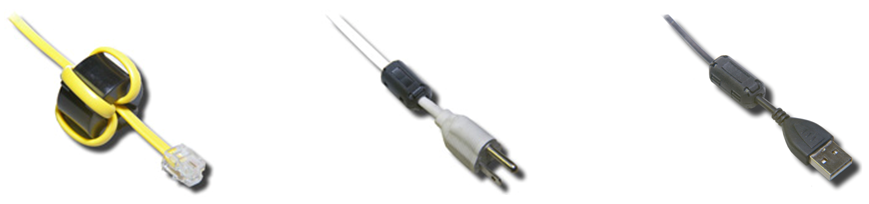

 Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (Application)

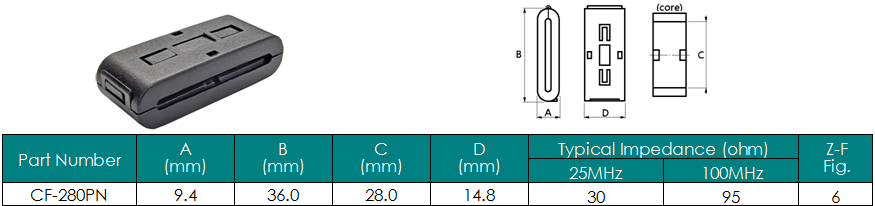

Dimension & Specificaiton :

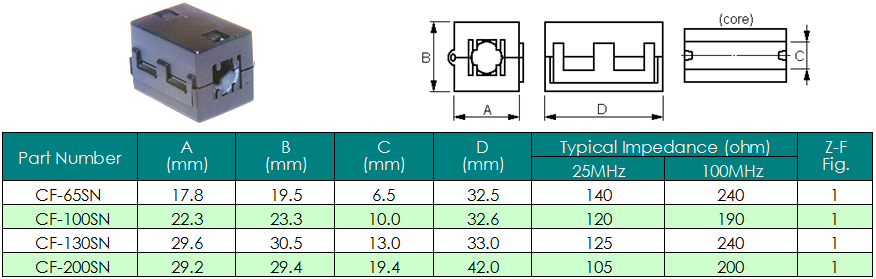

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFS Series)

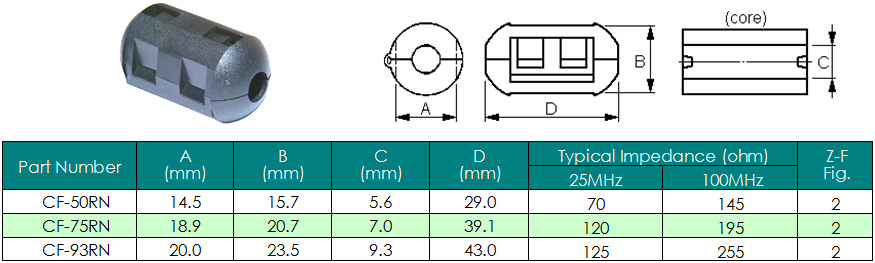

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFR Series)

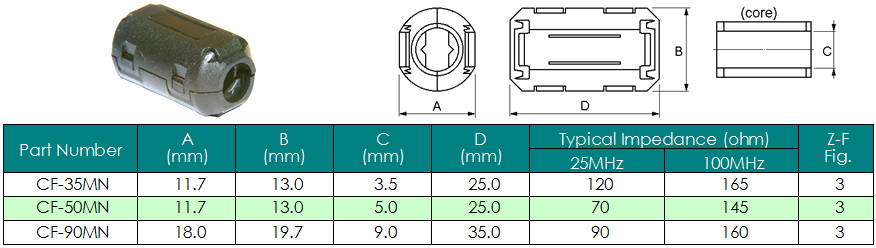

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFM Series)

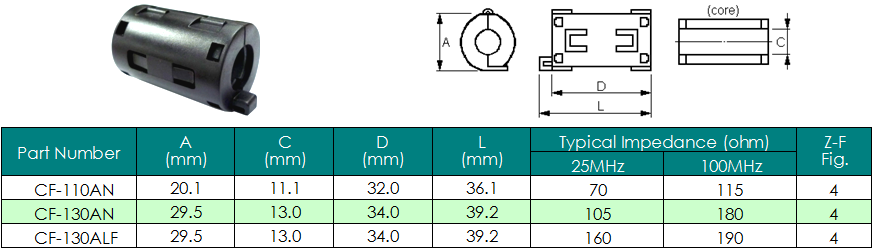

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFA Series)

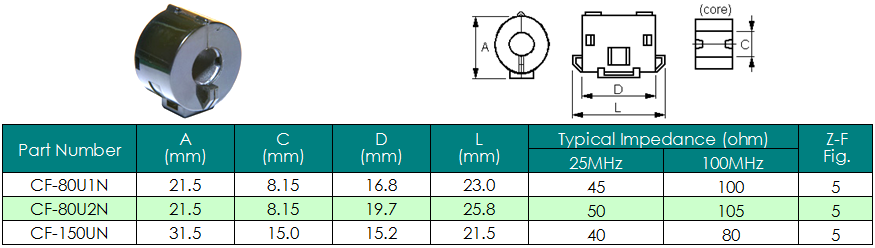

  Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFU Series)

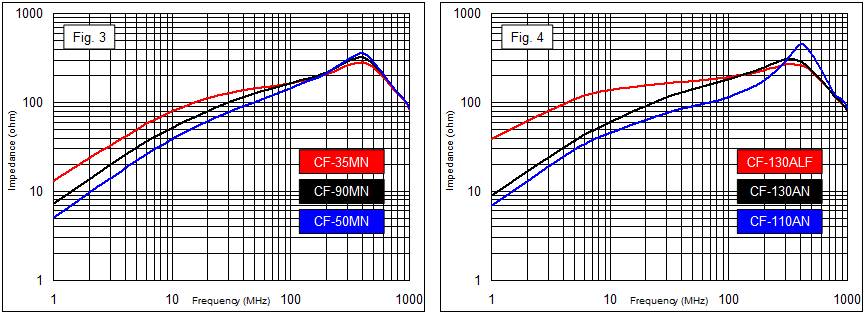

Impedance - Frequency Curve :

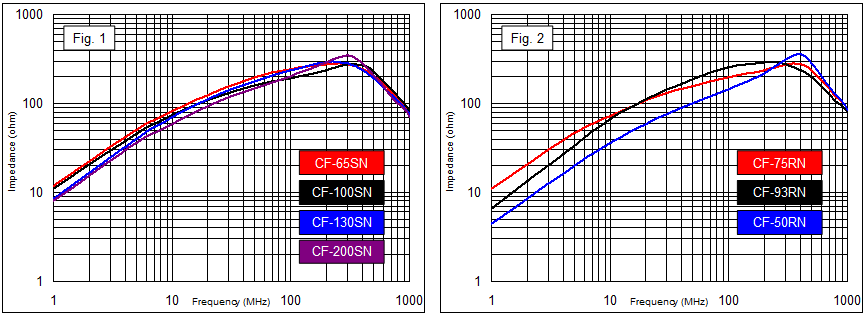

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFS Series) Impedance - Frequency Curve 1









Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFS Series) Impedance - Frequency Curve 2

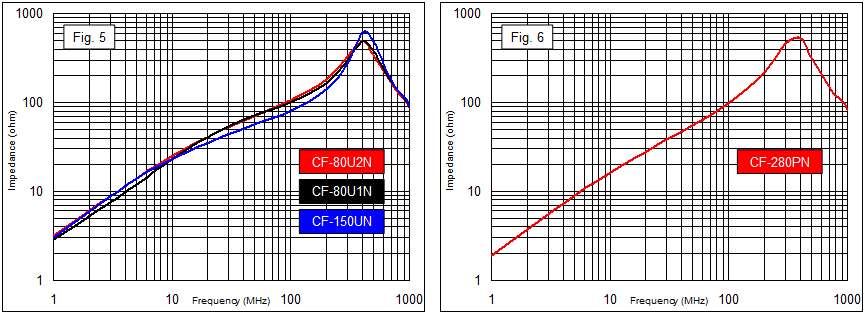

Ni-Zn EMI Suppression Ferrite Cores Split EMI Suppression Cores (CFS Series) Impedance - Frequency Curve 3











Note :

1. Above test condition is a diameter 1.0mm with 10cm length wire through the core to compare the impedance for reference.
2. For actually application, the wire length and diameter is different and impedance reading will not the same.

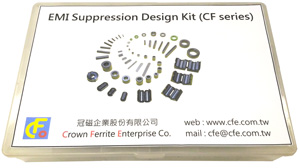

Design Kit :











Item pcs Item pcs Item pcs
CF-65SN 4 pcs CF-100SN 4 pcs CF-130SN 2 pcs
CF-50RN 4 pcs CF-75RN 4 pcs CF-93RN 4 pcs
CF-35MN 4 pcs CF-50MN 4 pcs CF-90MN 8 pcs
CF-110AN 2 pcs CF-130AN 2 pcs CF-130ALF 2 pcs
CF-80U1N 4 pcs CF-80U2N 4 pcs CF-150UN 2 pcs
