EMI / RFI / Microwave Absorbers

Flexible Absorbent Material (FAM)

(4) Tests

(1) Basic Information

(2) EMI/RFI Application
(3) RFID/NFC Application (4) Tests





PDF Version :

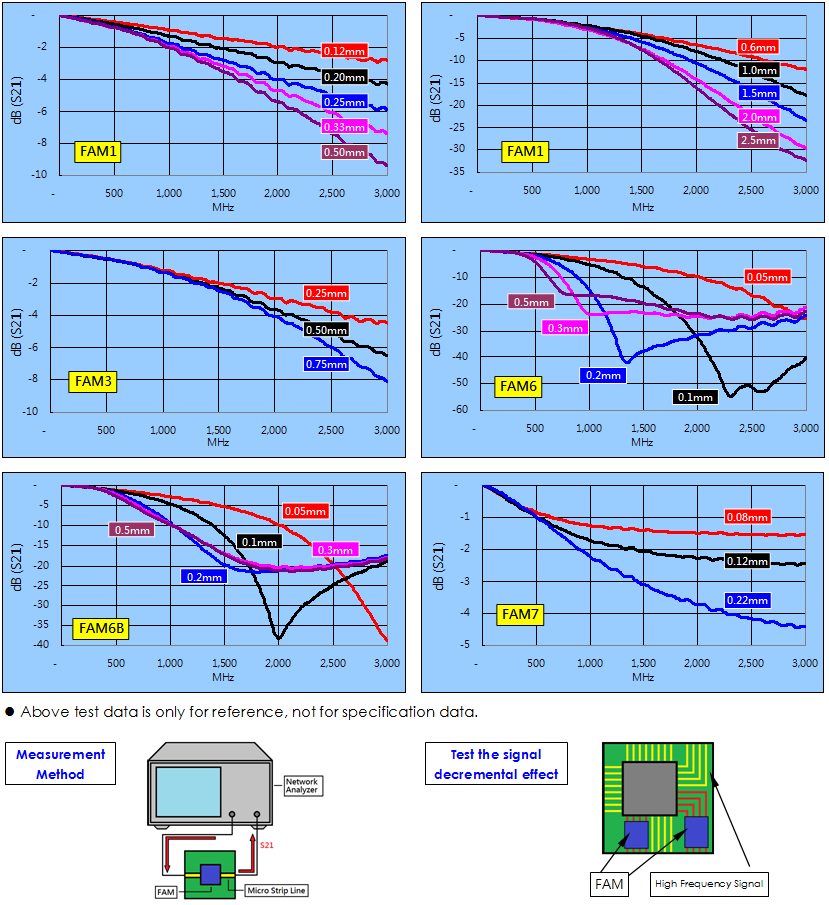

Filter Effect Test :

EMI / RFI Absorbers, Flexible Absorbent Material (FAM), Filter Effect Test

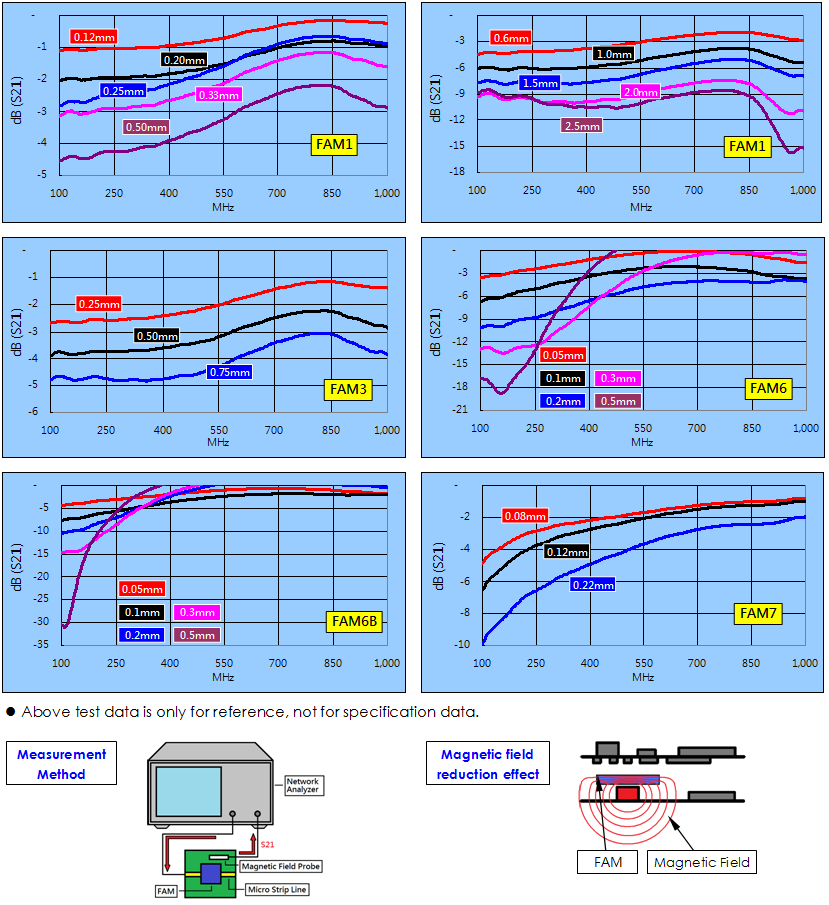

Magnetic Shield / Decoupling Effect Test :

    EMI / RFI Absorbers, Flexible Absorbent Material (FAM), Magnetic Shield / Decoupling Effect Test

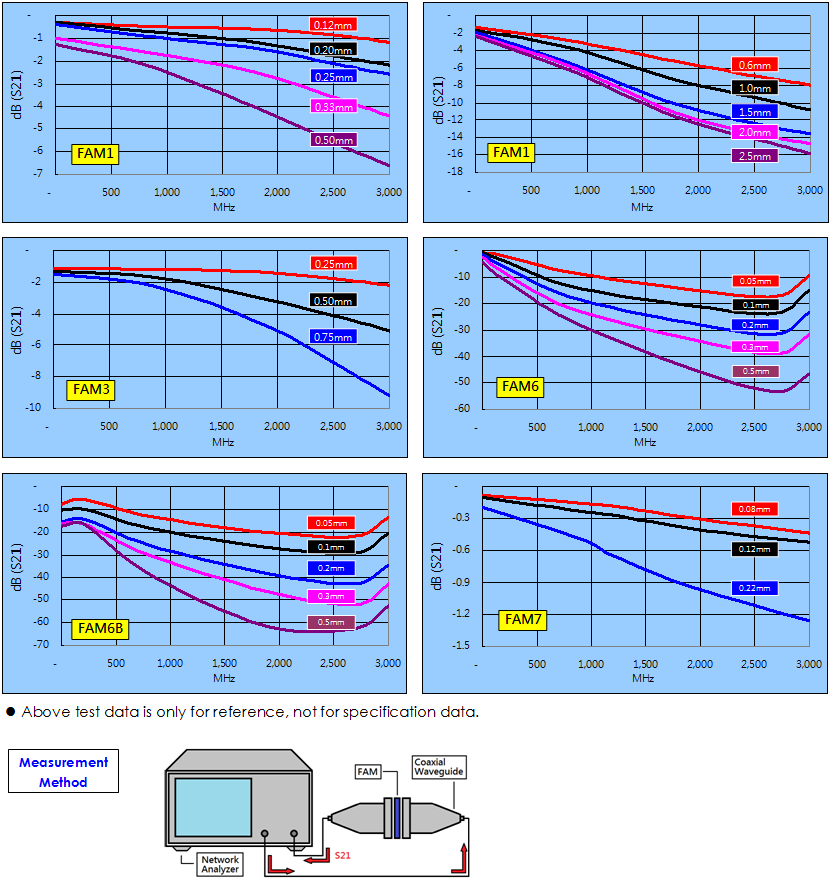

Insertion Loss (1MHz ~ 3GHz) :

EMI / RFI Absorbers, Flexible Absorbent Material (FAM), Insertion Loss (1MHz ~ 3GHz)

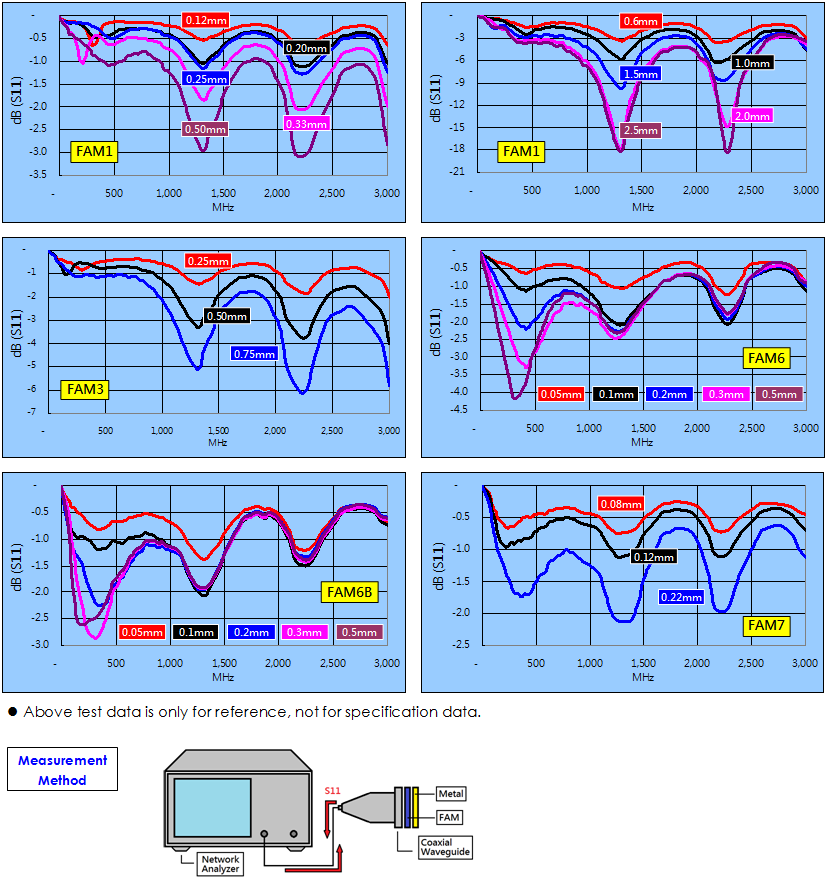

Return loss (1MHz ~ 3GHz) :

EMI / RFI Absorbers, Flexible Absorbent Material (FAM), Return loss (1MHz ~ 3GHz)

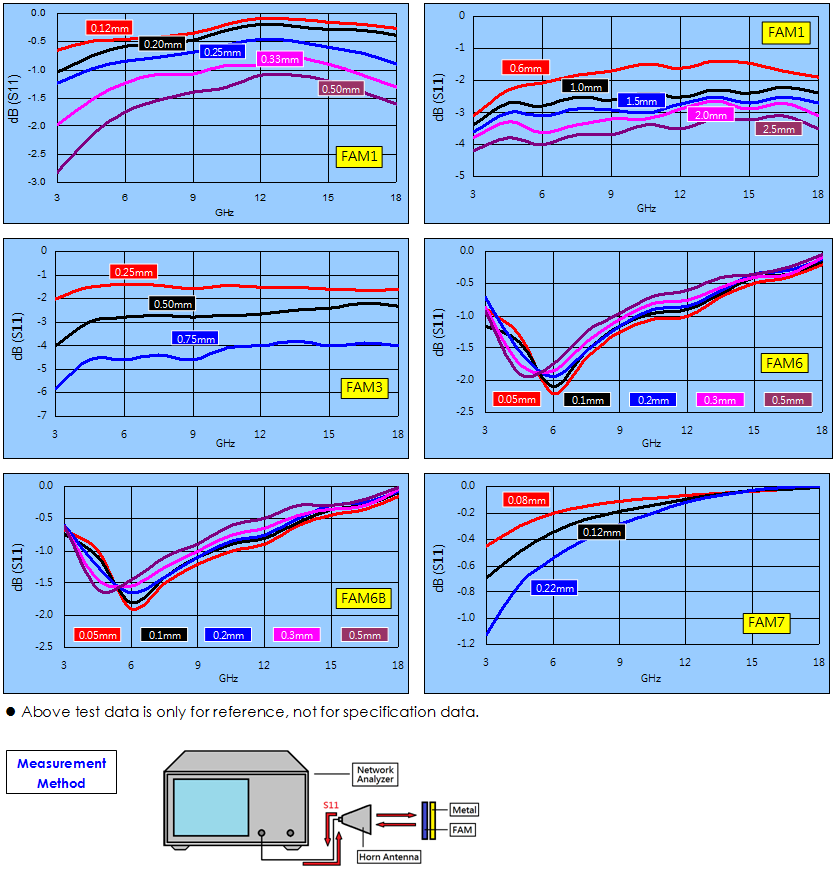

Return loss (3GHz ~ 18GHz) :

EMI / RFI Absorbers, Flexible Absorbent Material (FAM), Return loss (3GHz ~ 18GHz)
