Crown Ferrite - Broadband Flexible Absorbent Material (FAM-B)

Broadband Flexible Absorbent Material (FAM-B) is a thin, flexible and broadband EMI / RFI / Microwave absorber material. It can be cut any shape easily, freely arranged in space and provide effective EMI suppression in a wide frequency range from 5GHz to 40GHz. It is suitable to obtain a broadband reflection loss when perpendicular incident energy on metal background.

PDF Version :

Features :

· Ultra thin and extremely flexible

· Can be freely arranged in space

· Broadband absorber material

· Can be cut any shape easily

· Wide frequency range from 5 to 40GHz

· Reduce the eddy current on metal surface

· Reduce Cavity Resonance Effects

· Reduce antenna crosstalk

· Effective in preventing resonance

· Effective in preventing suppressing coupling

· Easy and fast to process

Applications :

· Digital Products

· Wireless equipments

· Shielding Box / Dark Box

· RCS (radar cross section) reduction

· Satellite LNB (Low Noise Block)

· Parabolic antenna / Horn antenna

Characteristics :

Property	FAM-B10	FAM-B15	FAM-B20
Thickness	1.0 mm	1.5 mm	2.0 mm
Max. Dimension	210 x 297 mm (A4 Size)
Operating Temperature	-40 ~ +150 ^oC
Volume Resistivity	10⁸ Ohm-cm
Density	3.0 g/cm³	2.2 g/cm³	2.0 g/cm³
RoHS 2.0 Compliance	2011/65/EU
Hologen-Free	Yes

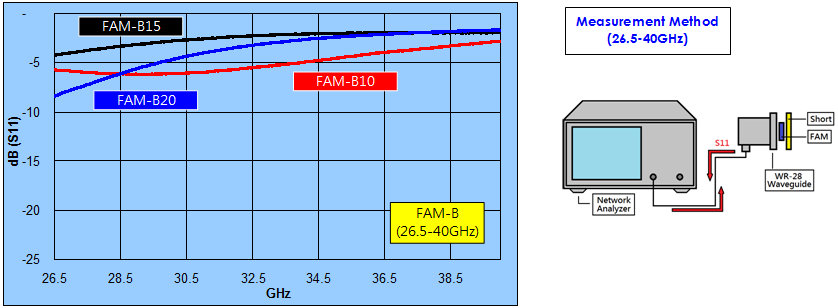

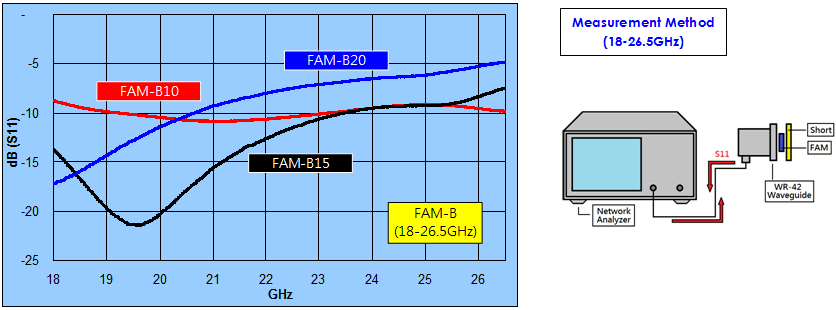

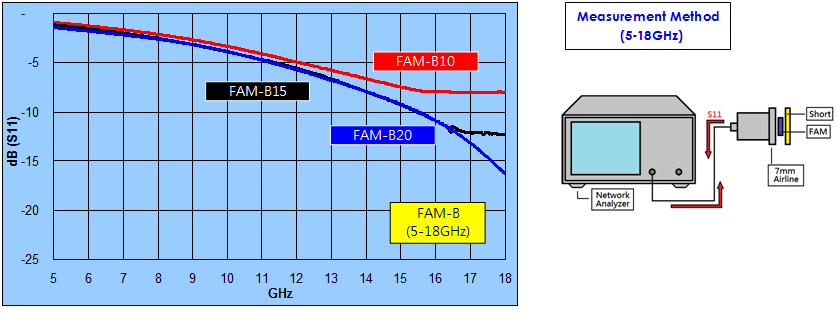

Return Loss :

* Above test data is only for reference, not for specification data.
